K475 Zarges Case 45137

Click to enlarge
Model#:45137
Quantity:

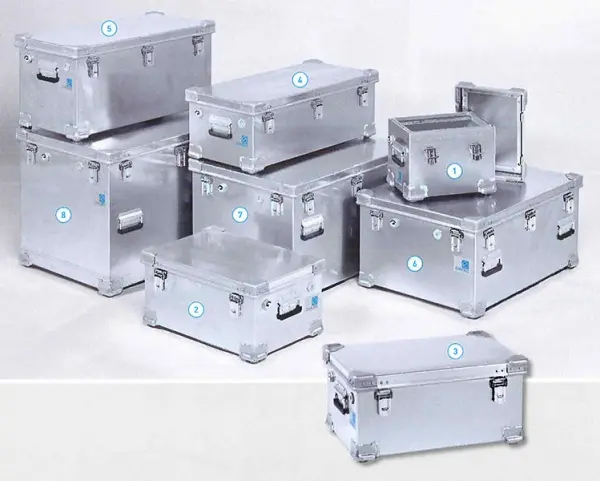

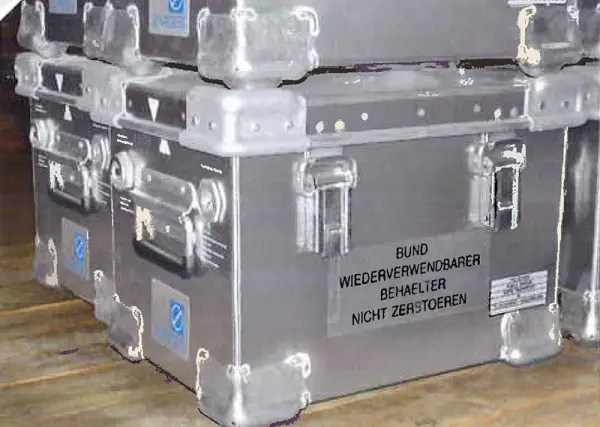

Transport and storage containers from the K 475 range are high quality re-usable packaging. They are designed as protective packaging for sensitive assemblies and instruments.

K 475 re-usable containers with special foam fittings, holders and other additional fittings are available on request.

Zarges Case 45137​ Details

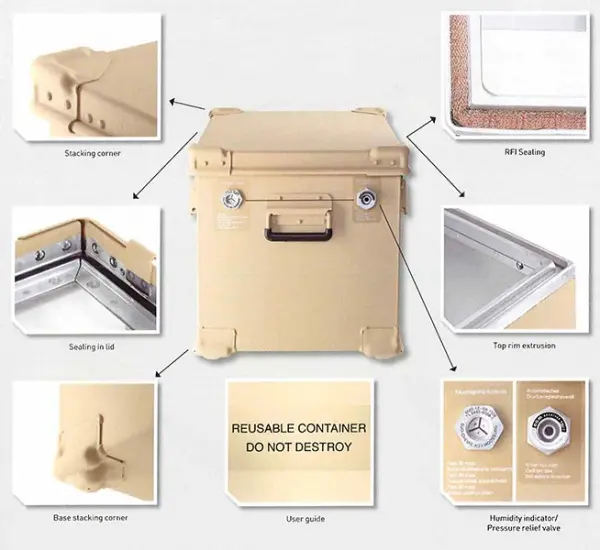

  • K 475 transport and storage containers in ruggedized and corrosion-proof aluminum according to TL 8115-0047.
  • Stackable.
  • Specially formed stacking corners.
  • Seam-welded at joints, protection class IP 67.
  • Lift-off lid with inner stiffening frame and continuous rubber seal in retaining channel.
  • Stirrup catches.
  • Spring loaded handles.
  • Pressure relief valve and humidity indicator.
  • RFI screening available.

Important notice: Clear diameter measurement for K 475 cases approx. 32 mm less than internal measurement (length and width). Special sizes on request.

Details

  • IP 67 protection class
  • Pressure tightness
    Test to TL 8100-0005-2.4.2, overpressure 163 mbar ± 5 %, test duration 30 ± 1 min.
  • Corrosion resistance
    Test to DIN 50 021 (salt spray test).
    Test duration 48 h. MIL-STD-810 E, Section 509.3, 24 hours.
  • Stack loading test
    Test to TL 8100-0005-2.6, method 2.
    Test mass equals 6 m stacking, test duration 7 d.
    STANAG 4340, AEPP-3, Section 301, gross weight 724 kg/1596 lbs.
  • Spring loaded handles
    Test to TL 8100-0005-2.5 (angle of lift max. 125°).
    Test force 1500 N/367 lbs each handle. Test dura tion 5 min.STANAG 4340, AEPP-3, Section 310, 181 kg/400 lbs per handle, 5 minutes in each case.
  • Vibration test
    Test to DIN EN 28 318. Alteration of frequency of vibration table from 5 to 300 Hz and back to 5 Hz. Speed of alteration of frequency of 0.5 Oct/min. Acceleration amplitude of the table constantly 15 m/s2, 2 runs.
  • Shock test
    Test to TL 8100-0005-2.9.1, vertical shock test (for cases without runners). Test according to TL 8100-0005-2.9.4 tipping test (for cases with runners).

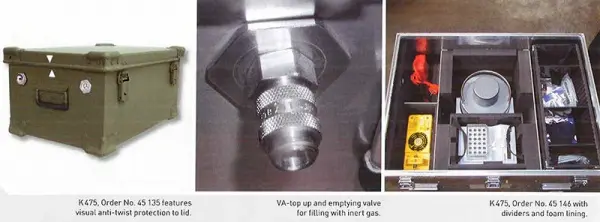

Accessories

  • Manometer
  • VA coupling for filling with inert gas
  • Foam linings
  • Foam inserts to individual requirements
  • RFI gasket
  • Desiccant compartment
  • Desiccant cartridges
  • Decompression opening
  • Pallet
  • Shock indicators

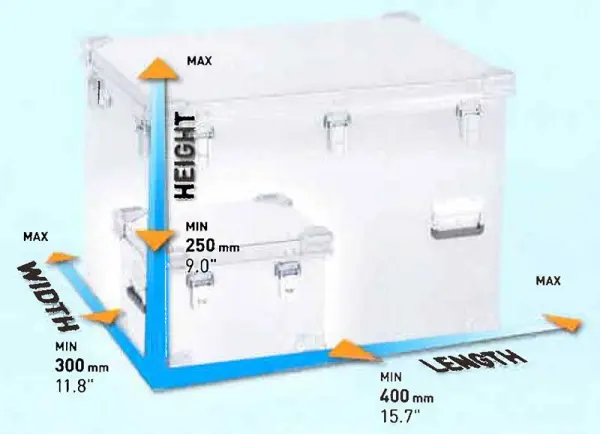

Specifications
  • Clear Internal Width Approx.: 12.99 in
  • Internal Height Approx.: 265 mm
  • Clear Internal Height Approx.: 10.43 in
  • External Length Approx.: 600 (mm) / 23.62 (in)
  • External Width Approx.: 400 (mm) / 15.75 (in)
  • External Height Approx.: 300 (mm) / 11.81 (in)
  • Capacity Approx.: 53 L
  • Weight Approx.: 7.1 (kg) / 15.7 (lb)
  • Internal Length Approx.: 560 mm
  • Clear Internal Length Approx.: 20.87 in
  • Internal Width Approx.: 360 mm
